This article describes how to add DNS records to Cloudflare in order to support various third-party software including Google Cloud, Amazon S3, Microsoft Azure, ClickFunnels, WPEngine, and Zoho.
Adding DNS records for vendors
This article requires prior knowledge of DNS record management via the Cloudflare dashboard. To learn more, refer to Cloudflare's article on managing DNS records.
Add the following MX records:
Once added, the DNS records appear similar to the following in Cloudflare's DNS app:
Add a CNAME record for Google App Engine to Cloudflare DNS.
For example, if the domain is www.example.com, the CNAME record is similar to:
www CNAME ghs.googlehosted.com
To configure a redirect for a Google Apps domain, refer to Google’s guide on URL forwarding.
Follow Google’s instructions for adding a site verification record to Cloudflare.
- Log into AWS.
- Click My Account in the top-right of the navigation bar.
- Select AWS Management Console from the dropdown.
- Click Services and select Route 53.
- Update nameservers in two places:
- Click Hosted zones and select the domain to update with Cloudflare's nameservers.
- Edit the nameservers to point to Cloudflare's nameservers.
- Click Registered domains.
- Select the domain to update with Cloudflare's nameservers.
- Click Add or edit name servers.
Note the full host URL assigned to the bucket.
Add a CNAME record for the AWS bucket in Cloudflare DNS. For example, if the full host URL of the bucket is files.example.com, add a CNAME record similar to the following:
files CNAME files.example.com.s3.amazonaws.com
Refer to Amazon’s documentation about SES and verification settings.
Find the TXT and CNAME verification records that Amazon provides.
Add the records to Cloudflare DNS. For example, if the Cloudflare domain is example.com, the DNS records are similar to the following:
example.com TXT "fmxqxT/icOYx4aA/bEUrDPMeax9/s3frblS+niixmqk=" verificationstring._domainkey.example.com CNAME verificationstring.dkim.amazonses.com
Refer to Amazon's ELB help content for guidance on ELB configuration at Amazon.
- Add a CNAME record to Cloudflare for the hostname; for example: elb
- In the Cloudflare DNS app, replace Domain name with the ELB target:
<AWS hostname>.<region>.elb.amazonaws.com is the proper CNAME target format
(for example: my-cool-cachepp-1344276401.eu-west-1.elb.amazonaws.com).
- Reach out to AWS support to determine AWS hostname or region.
Follow Microsoft’s instructions on configuring Azure DNS settings.
Add Azure’s required records to Cloudflare DNS.
For example, if the domain is example.com, the record format is similar to:
example.com A 203.0.113.1 www.example.com CNAME example.azurewebsites.net
For verification records, refer to Azure’s documentation on creating domain verification records.
See the examples below for adding proper Zoho DNS records to Cloudflare. In all examples, replace example.com with the actual domain name:
- Add Zoho MX records:
example.com MX mx.zohomail.com (set Priority to 10) example.com MX mx2.zohomail.com (set Priority to 20)
- (Optional) Add an SPF record:
example.com TXT v=spf1 mx include:zoho.com ~all
- (Optional) To access mail through a custom Zoho URL, add a CNAME record:
mail CNAME business.zoho.com
- (Optional) To add a Zoho domain validation record:
zb******** CNAME business.zoho.com
Refer to Unbounce's documentation to determine the CNAME record to add to Cloudflare.
Typically, the DNS records are similar to the list below. Replace example.com with the actual domain name:
email CNAME sendgrid.net example.com SPF v=spf1 a mx include:sendgrid.net ~all example.com TXT v=spf1 a mx include:sendgrid.net ~all mtpapi._domainkey.EXAMPLE.com CNAME dkim.sendgrid.net. smtpapi._domainkey.e.EXAMPLE.COM CNAME dkim.sendgrid.net
Refer to Ning's documentation on Custom Domains and DNS entries.
If the Ning custom domain is www.example.com, add a CNAME and an A record as follows:
www.example.com CNAME example.ning.com. example.ning.com A 22.214.171.124
After Ning verifies the domain, change the grey-cloud icon to an orange-cloud for the Ning DNS records so traffic can proxy to Cloudflare.
Consult SmugMug documentation for the latest details on DNS record requirements. Typically, add CNAME records for SmugMug similar to the following:
photo CNAME domains.smugmug.com photos CNAME domains.smugmug.com
After SmugMug verifies the domain, change the grey-cloud icon to an orange-cloud for the SmugMug DNS records so traffic can proxy to Cloudflare.
Refer to Mandrill's article on DNS records for the latest details on DNS record requirements.
Mandrill requires addition of SPF and DKIM records. Obtain the DNS record values from Mandrill.
Add the SPF and DKIM records as TXT records in the Cloudflare DNS app.
For example, if example.com is the Mandrill domain, add DNS records similar to the following.
example.com TXT v=spf1 include:spf.mandrillapp.com ?all mandrill._domainkey.example.com TXT v=DKIM1\; (values from Mandrill)
After ensuring that your domain nameservers at Namecheap point to Cloudflare,
1. Log in to the Cloudflare dashboard.
2. Click the appropriate Cloudflare account for the domain where you will add records.
3. Ensure the proper domain is selected.
4. Click the DNS app.

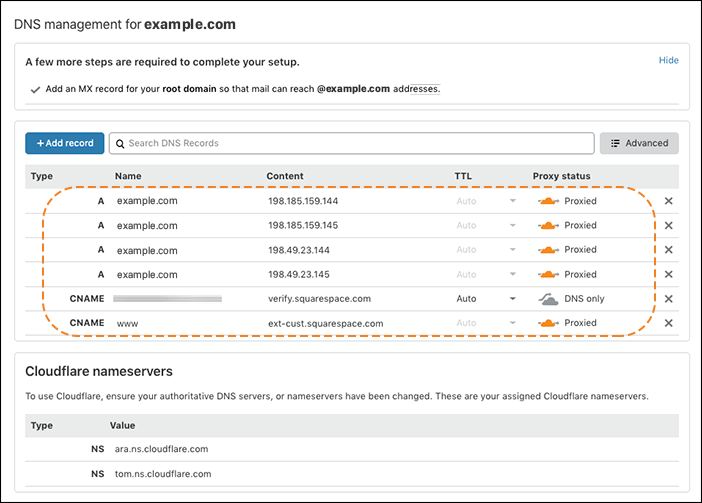

5. Ensure that all four (4) A records and the www CNAME from Squarespace are proxied through Cloudflare. Do not proxy the 'verify.squarespace.com' CNAME record.
If set up properly, your Squarespace DNS Settings page will now indicate that your 'Settings contain problems.' This is the expected behavior.
Now that your traffic is being proxied through Cloudflare, Squarespace and your site's visitors will see Cloudflare IP addresses if queried.
If example.com is the custom domain, add DNS records to Cloudflare similar to these below:
example.com A 126.96.36.199 www.example.com CNAME domains.tumblr.com
