Understanding Cloudflare Bot Management (beta)

Identify, monitor, and mitigate automated requests with Cloudflare Bot Management, a mitigation solution based on machine learning. Bot Management is currently in beta and available to customers in the Enterprise plan.


About Cloudflare Bot Management

With Cloudflare Bot Management, you can identify and mitigate scrapers and automated requests. This solution complements other Cloudflare Firewall products, including  Web Application Firewall (WAF), Rate Limiting, and IP Reputation Database. Bot Management is able to detect and block bad bots without needing JavaScript injection.

Bot Management takes advantage of machine learning across tens of millions of Internet properties proxied by Cloudflare and assigns a score to every request. Cloudflare's dynamic firewall rules can then match against malicious bot requests whenever the request's score falls below a specific threshold.

Key Cloudflare Bot Management benefits include:

  • A large training set that yields more accurate bot identification: Our training set comprises millions of requests made against several million Internet properties.
  • Decisions made at the edge reduce latency and result in faster performance: Since such a large number of requests traveling through the Cloudflare network get their score updated, we push the machine learning results to our edge. This way, requests can be evaluated at the edge instead of the origin. This reduces latency and prevents uncached requests from impacting server CPU at the origin.

Many different attack vectors can lead to compromised protection. Denial of service attacks, poor access controls, and SQL injection can aggravate bot-based attacks. To guard against these, security teams can design comprehensive protection with less training and context switching, using Cloudflare's consolidated firewall solution, which includes bot management.

Bot Management is a beta product available to customers in the Enterprise plan. Contact your Cloudflare account team to enable Bot Management for your site. Non-Enterprise customers can enable Bot Fight Mode.


Differences between Bot Management and other Cloudflare bot mitigation tools

Cloudflare Bot Management focuses on explicit bot mitigation as compared to our current WAF and rate limiting solutions.

Currently, Bot Management focuses on mitigating:

  • Credential and credit card stuffing,
  • content scraping, and
  • other types of deception including: spam, registration, marketing, and ad-click fraud.

Bot management detects and blocks bad bots based on the following mitigation methods:

Machine learning (ML)

By applying ML across millions of Internet properties, Cloudflare creates a reliable bot score that can be used to create rules for blocking requests based on the likelihood that they might come from a bot.

Behavioral analysis (BA)

Behavioral analytics detect and block abnormal requests based on HTTP sessions. This approach is user-agent agnostic and identifies potential bots based on actual metrics.

JavaScript injection

If you prefer additional independent protections, you can apply JavaScript inspection to suspicious traffic, but it's not required.

You can combine or use the above methods separately.

The most notable advantages of Bot Management over the standard Cloudflare solution are:

  • More reliable bot identification based on a large training set, and
  • faster performance with decisions made closer to the client.


Activating Bot Management

Once enabled for your Enterprise domain, you can enable Bot Management as follows:

  1. Log in to the Cloudflare dashboard.
  2. In the top menu, under your account name dropdown, select Account Home.
  3. Click the Configurations tab. If enabled, you should see a Bot Management item in the left navigation bar.
  4. Select Bot Management, then toggle the bot management feature to On.

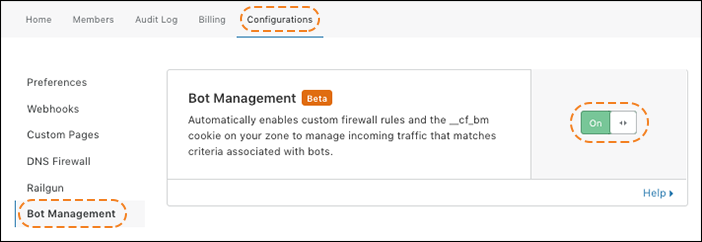

the bot management card toggled 'on' in the configuration section of cf account

After you have activated Bot Management:

  • The following Cloudflare Firewall Rules become available for use:
    • cf.bot_management.score - The score Bot Management generates for the request (0 to 100).
    • cf.bot_management.verified_bot - A boolean value that is true if the request comes from a good bot (whitelisted by Cloudflare), and
    • cf.bot_management.static_resource - An identifier to match file extensions for many types of static resources.
  • The header Cf-Client-Trust-Score becomes available via Cloudflare Workers.
  • The Cloudflare bot management _cf_bm cookie is set on your website to help with score improvement.


Frequent Bot Management questions

I enabled Bot Management in Log/Simulate mode. What data should I look for?

We recommend that you study the logged data and analyze if any of the information logged resembles your office IPs, your monitoring service, your favorite Python script, etc. White list them if necessary.

How does machine learning work?

Supervised machine learning takes certain variables (X) like gender and age and predicts another variable (Y) like income.

In Cloudflare Bot Management, the X variables are request features, while the Y variable represents the probability of solving a Captcha based on X values.

We use data from millions of requests and re-train the system on a periodic basis. You can learn about this data from your own request logs such as Cloudflare Logpull and Logpush as well as the Firewall API.

What is the difference between the threat score and bot management score?

The difference is significant:

  • Threat score (cf.threat_score) is what Cloudflare uses to determine IP Reputation. It goes from 0 (good) to 100 (bad).
  • Bot management score (cf.bot_management.score) is what Cloudflare uses in Bot Management to distinguish between good and bad bots. It goes from 0 (bad) to 100 (good).

These fields are available via Cloudflare Firewall Rules.

What is cf.bot_management.verified_bot?

A request's cf.bot_management.verified_bot value is a boolean indicating whether such request comes from a Cloudflare white listed bot.

Cloudflare has built a white list of good, automated bots, e.g. Google Search Engine, Pingdom, and more.

This white list is large based on reverse DNS verification, meaning that the IPs we whitelist really match the requesting service. In addition to this, Cloudflare uses multiple validation methods including ASN blocks and public lists. If none of these validation types are available for a customer, we use internal Cloudflare data and machine learning to identify legitimate IP addresses from good bots.

I run a good bot and want for it to be added to the white list (cf.bot_management.verified_bot). What should I do?

To be added to the Cloudflare white list, please submit this online application.
